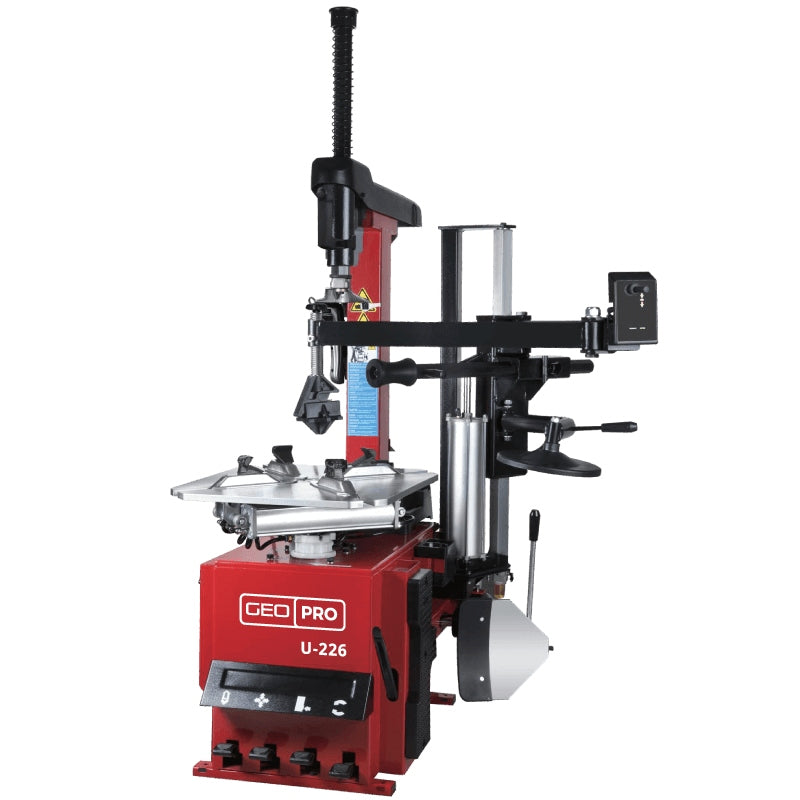

GEO U226 Automatic Tyre Changer with Tilt Back Column and Swing Arm

A tyre changer that keeps pace with your garage

The U226 is built around busy tyre bay’s. Its fully automatic pneumatic operation means your fitter is not wrestling the machine between jobs, and the tilt back column frees the wheel for loading without reorganising the bay. Handling external clamping from 10 to 21 inches and internal clamping up to 24 inches, it covers the full spread of car and light commercial wheels that walk through a professional garage day to day. If your tyre bay is a real earner, the equipment in it needs to reflect that.

What makes the U226 work the way it does

The core of the U226 is a 1.1kW motor producing 1,078Nm of turntable rotation torque. This allows the machine to handle larger and stiffer tyres consistently, including run-] flats and low-profile fitments that require real force to seat correctly. The 2,600kg bead breaker works independently of the turntable and applies concentrated force at the bead rather than relying on the clamp mechanism to carry that load.

The swing arm design is a deliberate choice for garage environments where space is measured carefully. It moves through a controlled arc rather than requiring clear space in a fixed direction, which makes it practical in a tyre bay that does not have the floor area of a dealership fitting centre.

• Alloy protection: Plastic jaw covers are fitted as standard, so alloy wheels move through the bay without additional prep or padding.
• Tyre inflation included: The integrated inflation system means the wheel goes from machine to balancer without leaving the bay to find an airline.
• Single phase supply: Plug and play on a standard 1 phase supply with an 8-10 bar air line, no rewiring or specialist installation.
• Double point assist arm: Two contact points on the mount and demount head give more consistent control across the tyre sidewall.
• Filter lube regulator: Air quality is managed at the machine, protecting internal components and keeping the pneumatic system operating at specification.

What this means for the people using it every day

In a busy tyre bay, efficiency matters. The U226 is designed to support smooth day to day operation with features that simplify the tyre changing process. Its tilt back column provides clear access when mounting and demounting wheels, while the swing arm design helps maximise working space around the machine. Automatic operation reduces the need for manual input during key stages of the process, allowing mechanics to focus on the task at hand.

For garages regularly handling alloy wheels, the U226 is supplied with plastic jaw covers as standard. By being permanently fitted, they are always available when needed and help protect wheel finishes during clamping.

The U226 is backed by a 2 year parts warranty under GEO's standard terms and conditions, providing additional reassurance from the day the machine is installed.

Certification and warranty
The U226 is supplied by GEO and conforms to current UK and EU regulations. Full certification documentation is available on request. Please contact us at sales@zenticautomotive.co.uk if you require this prior to purchase.

The GEO U226 is a fully automatic tyre changer with the capacity and the specification to handle what a professional tyre bay demands, backed by a 2 year parts warranty and supplied through Zentic's verified UK distribution. Buy today and we will confirm lead time and delivery details with you directly. Call us on 0203 5767 937 to discuss delivery logistics.
