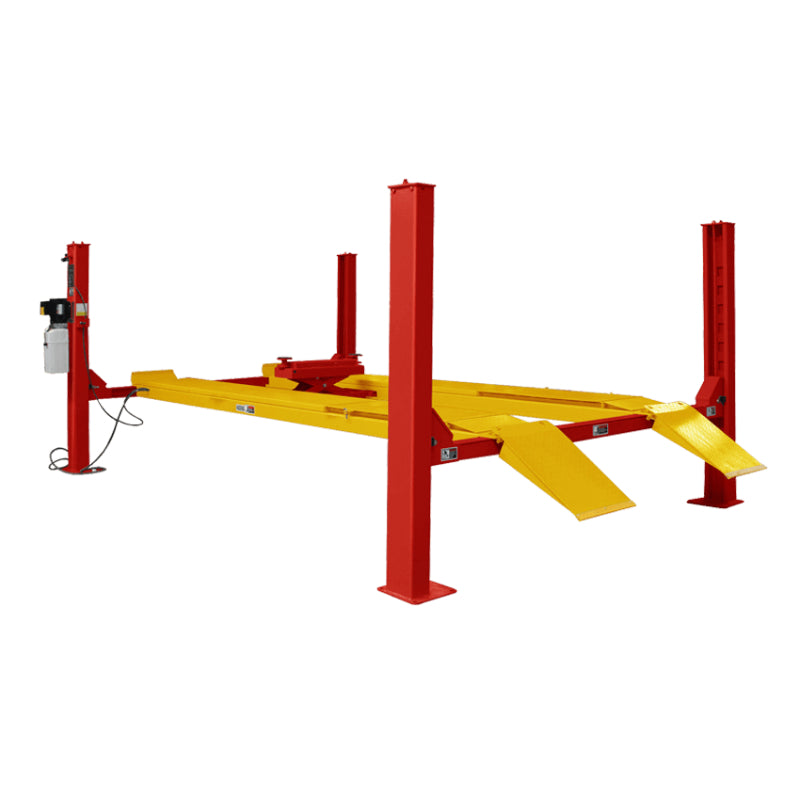

Red and yellow blue four post vehicle parking lift lift with the platform lowered halfway on a white background

GEO M5 Four Post Parking Lift - 4000kg SWL Dual Vehicle Storage

by GEO
£3,525.00
+ VAT

Notify me when back in stock

Description

Store two vehicles without touching your floor plan

If your garage is turning away storage work because the floor space simply is not there, the GEO M5 changes that. With a 4,000kg safe working load and a lifting height of 2,159mm, this lift puts a full second vehicle directly above the first, freeing up floor space and making a real difference to what your business can take on.

What makes the GEO M5 capable of handling vehicles day after day

The M5 is built on a four post platform design that distributes load across the full chassis of vehicles. With an overall width of 3,137mm and a platform width of 540mm, the ramp geometry accommodates a broad range of vehicle types including larger estates, vans and SUVs comfortably within the 4,000kg capacity. The platform can also be configured for ATVs and quads, which makes the M5 useful across different areas of a vehicle storage or preparation operation.

  • Oil drip trays are included as standard, protecting any vehicle stored on the lower level from contamination.
  • The mobile castor kit allows the entire unit to be repositioned without disassembly, so your layout is not fixed permanently.
  • The platform accommodates ATVs and quad bikes as well as standard vehicles, giving the lift more than one role.
  • The lift can be bolted to the floor for permanent installation or left freestanding depending on your site requirements.
  • Fully CE certified, meeting current UK and EU safety standards.

Running a tighter operation without sacrifice

A garage that can hold more vehicles at any one time has more flexibility in how it manages workflow, customer handovers and collection timing. The GEO M5 puts a second vehicle directly above the first within a footprint your existing floor plan can already accommodate, at a 2,159mm lift height that gives practical clearance for working or access beneath.

The 4,000kg safe working load means this is not a lift you will have to work around on heavier vehicles. The oil drip trays protect whatever is stored underneath, which is essential for customer satisfaction. The mobility of the unit means your garage layout stays flexible as your business changes. The overall platform length of 5,715mm with ramps gives you the run-on distance to load longer wheelbase vehicles without stress.

Verified and proven in professional use

The GEO M5 range has undergone CE certification to the strictest European standards, and all technical documentation is held in the UK.

The M5 range was installed into McLaren's manufacturing facility in 2017, who then placed a repeat order in 2018. There are not many better endorsements in the automotive world than a repeat order from a company whose entire reputation rests on precision.

The GEO M5 gives a professional garage an immediate, practical increase in storage capacity without a building project or a floor plan redesign. Buy today and your lead times will be confirmed upon order. Please call us on 0203 5767 937 if you have any questions relating to your order, access restrictions or specific delivery requirements.

Specification
Specification Detail
Lifting Height 2159mm
Overall Length No Ramps 4928mm
Overall Length With Ramps 5715mm
Overall Width 3137mm
Column Height 2433mm
Platform Width 540mm
Lowest Platform Height 121mm
Distance Between Platforms 1003mm
Maximum Lifting Capacity 4000kg (SWL)
Documents

PDF M5 Datasheet

Shipping

Shipping is FREE on all orders to customers within mainland UK.

We don't want to mess around with fine print and extra charges, we like things to be simple and easy.

Want to know about our Returns Policy? Read more here.

Order Confirmation:

As soon as you place your order you will receive an order confirmation e-mail.  This means that we have received your order in our system and pre-authorised your credit card for the purchase.

As soon as we receive your order we automatically check to confirm that your order is in stock and available for immediate shipment.  If your item is on back-order or unavailable we will void the pre-authorisation and reach out to you via e-mail to see if alternate arrangements can be made.

If your item(s) are available for immediate shipment (within 5 business days) we will process the charges and get to work preparing your order for shipment.

Order Shipment:

If your order is in stock and we process the charges to your credit card it will ship within three business days from the date of your order.

We will send you shipping confirmation within 24 hours of your order leaving the warehouse to the e-mail address you provided when checking out.

If you do not receive shipping confirmation from us within four business days of your order feel free to follow up with us at sales@zenticautomotive.co.uk

International Orders:

Please be aware that we currently only ship to the UK.

Damages:

Please inspect the packaging of your item(s) when they arrive, if you notice any damage you should make note of it when signing for delivery or do not agree to accept the delivery.

If you do accept delivery you are required to immediately take photos using your smart phone or camera of the damaged packaging or products inside the packaging.

If your item(s) do arrived damaged please send photos to sales@zenticautomotive.co.uk, then visit our Returns page and lodge your return claim online.

Why Buy From Us?

Buying workshop equipment at this level is a serious investment. Here is what you can expect when you buy from us.

Manufacturer-Approved Products Only

Every product on Zentic has been sourced directly through manufacturer-approved channels. If it does not meet certification and quality standards, it does not appear on our site.

UK Certified Without Exceptions

All equipment listed is independently verified to meet UK safety and regulatory standards. You will always find full certification details on the product page.

Free Delivery to UK Mainland

All orders are delivered to mainland UK addresses at no additional cost. Lead times are confirmed at the point of order. No hidden charges.

Full Manufacturer Warranty Intact

Every product is sold with the manufacturer's full warranty. We never sell grey imports or products with voided or modified warranty terms.

Lifetime Support, As Long As You Need It.

Buying the equipment is the easy part. Our support doesn't stop once your order arrives, or after the warranty period ends. If you need help with installation, have a question further down the line, or want advice before ordering parts, just give us a call or drop us an email. We're here to help whenever you need us.

Straight Answers, No Runaround

If you have a question about a product, a delivery or an order, contact us and you will speak to someone who knows the equipment. We do not outsource our customer support.

Description

Store two vehicles without touching your floor plan

If your garage is turning away storage work because the floor space simply is not there, the GEO M5 changes that. With a 4,000kg safe working load and a lifting height of 2,159mm, this lift puts a full second vehicle directly above the first, freeing up floor space and making a real difference to what your business can take on.

What makes the GEO M5 capable of handling vehicles day after day

The M5 is built on a four post platform design that distributes load across the full chassis of vehicles. With an overall width of 3,137mm and a platform width of 540mm, the ramp geometry accommodates a broad range of vehicle types including larger estates, vans and SUVs comfortably within the 4,000kg capacity. The platform can also be configured for ATVs and quads, which makes the M5 useful across different areas of a vehicle storage or preparation operation.

  • Oil drip trays are included as standard, protecting any vehicle stored on the lower level from contamination.
  • The mobile castor kit allows the entire unit to be repositioned without disassembly, so your layout is not fixed permanently.
  • The platform accommodates ATVs and quad bikes as well as standard vehicles, giving the lift more than one role.
  • The lift can be bolted to the floor for permanent installation or left freestanding depending on your site requirements.
  • Fully CE certified, meeting current UK and EU safety standards.

Running a tighter operation without sacrifice

A garage that can hold more vehicles at any one time has more flexibility in how it manages workflow, customer handovers and collection timing. The GEO M5 puts a second vehicle directly above the first within a footprint your existing floor plan can already accommodate, at a 2,159mm lift height that gives practical clearance for working or access beneath.

The 4,000kg safe working load means this is not a lift you will have to work around on heavier vehicles. The oil drip trays protect whatever is stored underneath, which is essential for customer satisfaction. The mobility of the unit means your garage layout stays flexible as your business changes. The overall platform length of 5,715mm with ramps gives you the run-on distance to load longer wheelbase vehicles without stress.

Verified and proven in professional use

The GEO M5 range has undergone CE certification to the strictest European standards, and all technical documentation is held in the UK.

The M5 range was installed into McLaren's manufacturing facility in 2017, who then placed a repeat order in 2018. There are not many better endorsements in the automotive world than a repeat order from a company whose entire reputation rests on precision.

The GEO M5 gives a professional garage an immediate, practical increase in storage capacity without a building project or a floor plan redesign. Buy today and your lead times will be confirmed upon order. Please call us on 0203 5767 937 if you have any questions relating to your order, access restrictions or specific delivery requirements.

Specification
Specification Detail
Lifting Height 2159mm
Overall Length No Ramps 4928mm
Overall Length With Ramps 5715mm
Overall Width 3137mm
Column Height 2433mm
Platform Width 540mm
Lowest Platform Height 121mm
Distance Between Platforms 1003mm
Maximum Lifting Capacity 4000kg (SWL)
Documents

PDF M5 Datasheet
